WELCOME TO GEODELTA SYSTEMS SDN BHD

Front End Engineering · 3D Laser Scanning · BIM

We position our company to engage in Front End Engineering Design (FEED), Detailed Design and Project Management Services. In addition we also provide Dimensional Control for Clash Checking, Building Information Modeling as well as Asset Data Management


Screenshot 2019-07-08 at 12.19.56 AM.png

                                                      FRONT END ENGINEERING DESIGN AND ASBUILT SERVICES

FEED · 3D Laser Scanning · BIM

Geodelta systems, being a specialized in 3D Laser scanning, modelling and design focus company is serving both Oil & Gas and built environment segment



OUR SERVICES

Helping energy companies maximise the value of their assets with the following:


Front End Engineering and Design (FEED)

Detailed Design

Project Management Services

Late Field Life Operation/Extension

Brownfield Modifications


We work with our clients to progress the definition of their selected conceptual design(s) to an agreed level of detail to confirm project viability. Our front-end capability includes greenfield projects and brownfield upgrades with core local front end engineers covering Process, Mechanical Layout, Safety, Electrical, Instrument, Structural and Cost Estimator.


Converting the highest value solution into a successfully delivered, safe and reliable project, Geodeltawill bring an understanding of the risks and uncertainties associated with each of these areas to the front-end engineering process and the processes for managing these.



OUR SERVICES: FEED AND ENGINEERING

FEED Studies

Conceptual Design

Feasibiity and due diligence Studies

Mass and Flow balances, energy balance

PFD’s

P&ID’s

Process Control Philosophy

Plot Plans/Layouts

Utilities Consumptions

Cost Estimating and schedule development

Long Lead items identidfications

HAZOP

HAZID


Typical design engineering capability

Process

Mechanical & Piping

Electrical &HVAC

Pipeline

Civil & Structural

Instrumentation & communications

Safety and Environmental Studies

OUR SERVICES: 3D LASER SCANNING AND MODELLING

Geodelta  Surveys can play a significant role during FEED on most major projects. Strategic input relating to the capabilities and expectations of Dimensional Control, critical path fit up’s and CAD Modelling during detailed design and project execution phase can be vital for the on time completion of site works.

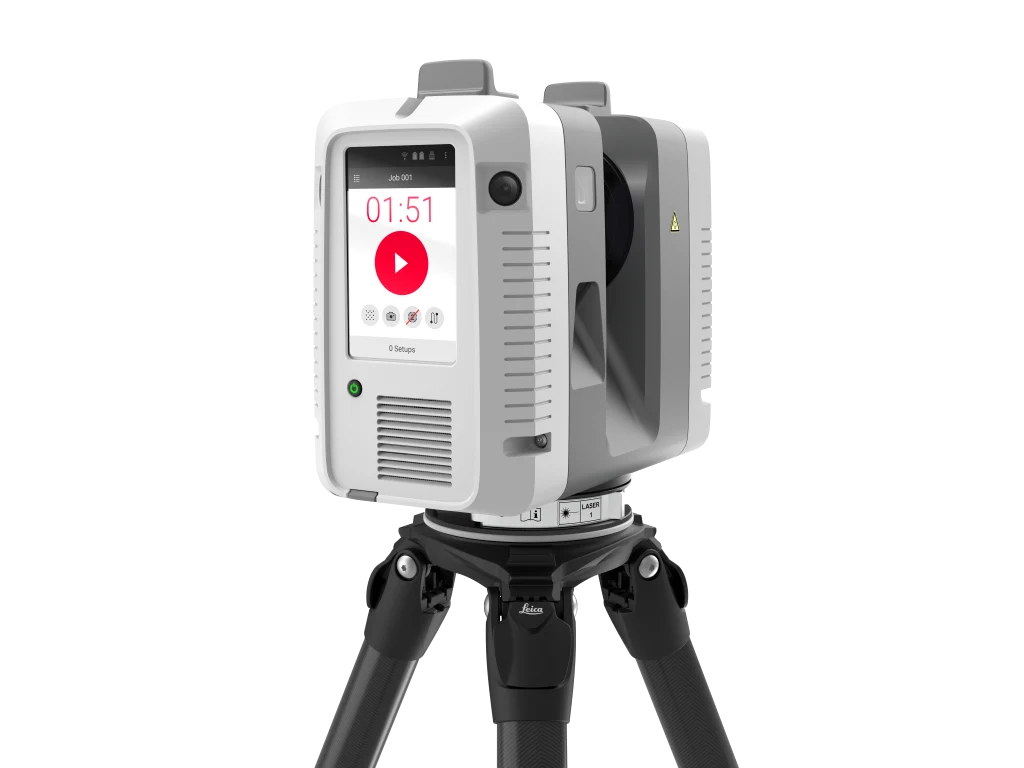

Industrial 3D Laser Scanning

Our highly accurate laser scans provide completely reliable as-built data into any AutoCAD based system, allowing clients to improve project planning and to achieve large savings through the avoidance of re-work and clashes.

Industrial Fit Up Surveys

Achieving first time lift & fit is critical to minimise shutdown costs. Our commitment to delivering our clients’ requirements, combined with our technology and expertise, has enabled us to deliver first time lift & fits

Industrial Clash Detection

With the advent of 3D Laser Scanning – achieving a clash free design is now a realistic goal. Accurate and complete 3D images, CAD models and project visualisations can now be provided for virtually any complex, congested industrial environment.

Scan to BIM & Revit Modelling

Using our 3D CAD modelling and measured building surveys expertise, supported by the latest 3D laser scanning technology and selected alliances with world-leading BIM specialists, means we can help specify and then deliver any BIM project to the highest standards.

3D CAD Modelling & Visualisations

We offer a complete range of 2D and 3D CAD services and produce dimensionally accurate data in a wide range of software suites and file formats.

OUR SERVICES: PIPE STRESS ANALYSIS,  REVERSE ENGINEERING, TANK CALIBRATION

Specialised Solutions for Your Every Need

PIPE STRESS ANALYSIS AND REVERSE ENGINEERING

Geodelta has engineers with vast experience in providing Pipe Stress Analysis design for the oil & gas, petrochemical, power generation, manufacturing, water treatment and other industries.


Together with our capabilities in 3D laser scanning,

Pipe Stress Analysis, 3D modelling, Geodelta can also provide “reverse” engineered solutions for clients who require this service.


In addition

  • Transient analysis for unsteady flow problems involving slugging (slug flow) and water hammer.

  • Dynamic analysis solutions to confirm operating conditions of the plant or refinery.

  • Checking of existing analysis and verification work.

  • Analysis to resolve existing piping problems (site conditions)

  • Redefining piping layout based on 3D laser scan output (reverse engineering)

  • As-built verification and /or piping with extreme settlement.

Skid package analysis

Pipe Stress_edited.png
Tank Inspection.png

TANK CALIBRATION

For general tank inspections, 3D scanners allow you to quickly capture high accuracy and high density information to evaluate the conditions of storage tanks. Thanks to 3DReshaper and its dedicated module, run a complete and guided analysis, using API 650/653 tolerances, or not. Process a 3D Inspection, check roundness, plumbness and verticality, compute settlements on the bottom of the tank, and much more!

Call us today to find out more about our range of quality services.
